ZGFM-1700 Automatic Litho Laminator Machine
INTRODUCTION:
1.1 Function:
The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.
1.2 Structure:
A. Top sheet Feeder: It can send stacks of 120-800gsm paper from above.
B. Bottom sheet feeder: It can send 0.5~10mm Corrugated/paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper. Glue roller is stainless steel.
D. Calibration structure-Fits the two papers according to the set tolerances.
E. Pressing Conveyor: Presses the attached paper and conveys it to the delivery section.
The frames of this series of products are all processed at one time by a large-scale machining center, which ensures the accuracy of each station and ensures more stable operation of the equipment.
Parameters:
| Model | ZGFM 1500 | ZGFM 1700 |
| Max size | 1500*1500mm | 1700*1700mm |
| Min size | 360*380mm | 360*400mm |
| Top Paper | 120-800g | 120-800g |
| Bottom paper | ≤10mm ABCDEF corrugated board ≥300gsm cardboard | ≤10mm ABCDEF corrugated board ≥300gsm cardboard |
| Max speed | 150m/min | 150m/min |
| Power | 25kw | 27kw |
| Stick accuracy | ±1mm | ±1mm |

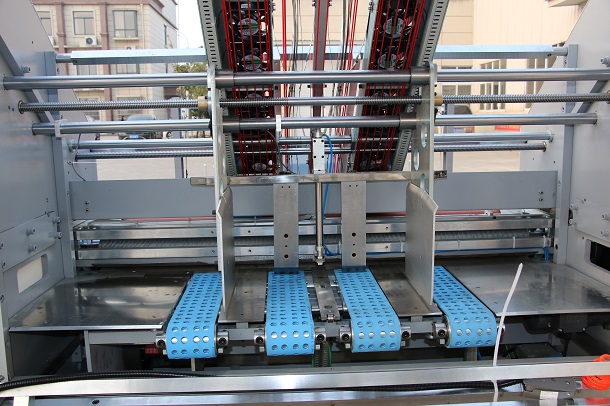

1.BOTTOM SHEET FEEDING
Use imported Servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.

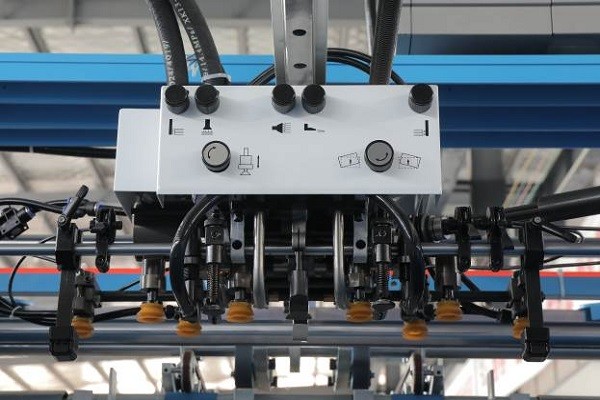

2.TOP SHEET FEEDING MECHANISM
Both paper lifting and feeding nozzle of high speed auto dedicated feeder can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump, ensure top feeding paper run fast and smoothly.
3.ELECTRICAL SYSTEM
Designed and adopt U.S.A Parker motion controller together with Yaskawa Servo system and inverter, Siemens PLC to ensure machine run at max. speed and accuracy as premium performance and running stability.
