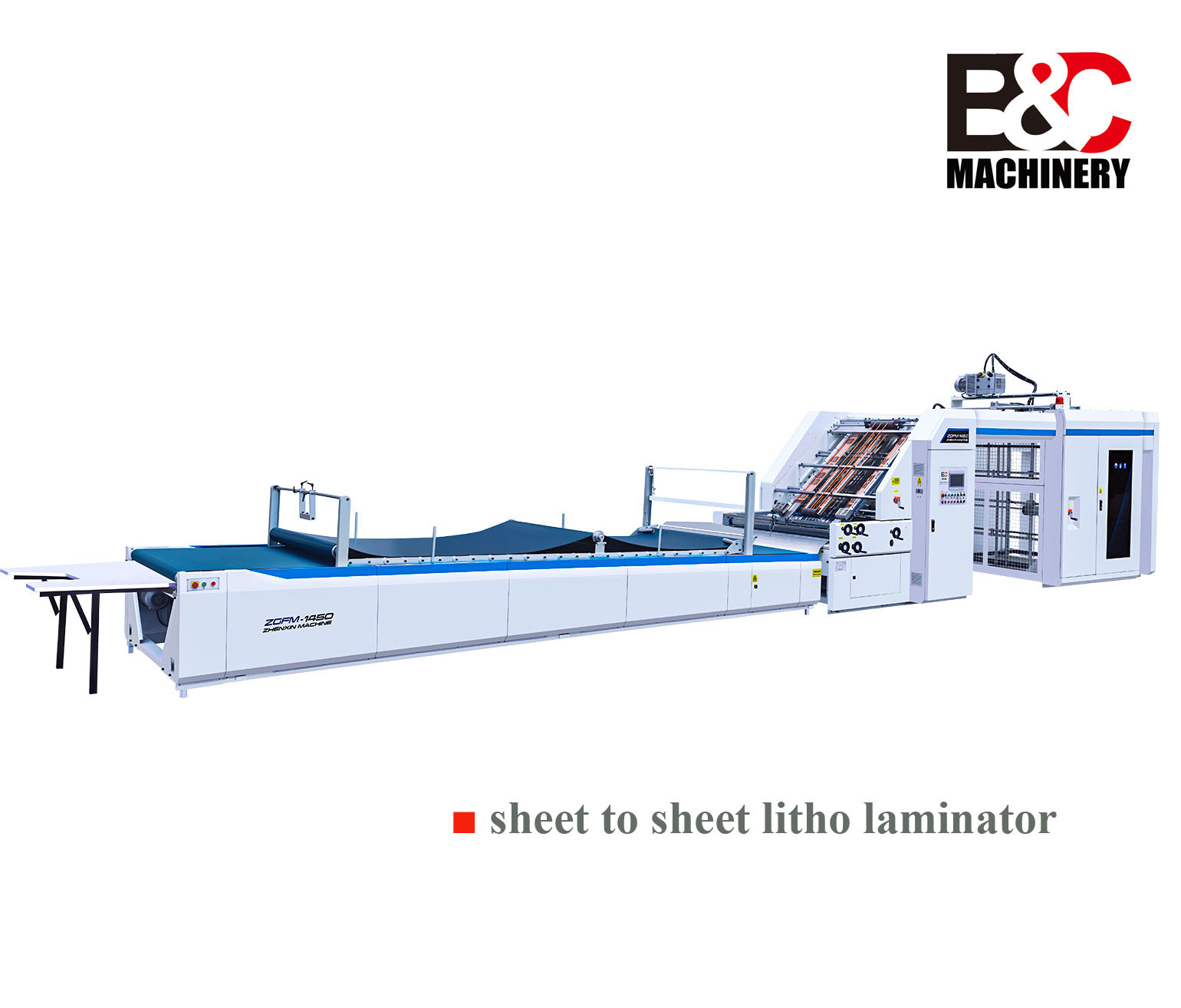

Higher speed Flute Laminator Machine
Specification
The original dynamic programming for the system, the paper chase arrived before syndiospecific, lateral to synchronous type and side syndiospecific location, two pieces of paper can be marching accurately and completely.Transmission: planetary transmission system, power transmission distribution, the whole machine is made of timing belt drive, maintenance free, low noise, high efficiency.
The low E type double gap design, can be attached to the paper tray into the use of feeding dray, convenient and quick. Can also be added with a track to assist the pile board, ideal E type of low pile board with high speed lifting device, paper complement in a shorter time, increase work efficiency.
The new development of the ceiling before feeding paper machine, avoiding size conversion debugging, the novice can also operate, barrier free space.
Fluff type delivery structure: can overlap the compressed finished first fluff after pushing, to ensure smooth delivery. E type supporting board with high speed lifting device can quickly and easily be finished out, increase work efficiency.
Speed and pressure paper length power adjustable, convenient size conversion, will complete the attached paper overlapping compression, also can accelerate the speed, the paper respectively compression. The new round ofincrease pressure group, tissue bonding product two degrees weight can be respectively compressed, make the product more smooth and exquisite.
Special planning of high precision coating mechanism of wheel and a round of machining accuracy (0.01m/m, adhesive coating in the lowest about can be transferred to the 0.02m/m). Automatic liquid level control, can according to the demand for paper precisely regulate the amount of coating and ensure the casters for easy dismantling, cleaning and adjustment. Glue scraping back wheel, the high-speed operation of the wheel rim will not overflow glue, and can adjust the glue of reflux, to ensure that the coating device.
Parameters:
| Model | GFM1450 | GFM1650 |
| Max size | 1450*1450mm | 1650*1650mm |
| Min size | 450*450mm | 450*450mm |
| Paper | 150-800g | 150-800g |
| Bottom paper | ≤10mm ABCDEF corrugated board | ≤10mm ABCDEF corrugated board |
| Max speed | 12000pcs/h | 12000pcs/h |
| Power | 25kw | 27kw |
| Stick accuracy | ±1.5mm | ±1.5mm |
Product Tags:
|
|

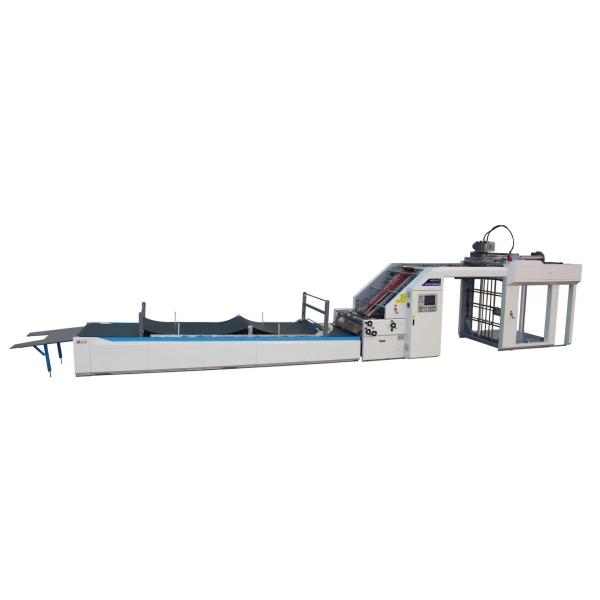

1450x1450mm High Speed Litho Lamination Machine 25kw Images
|
