Automatic Paper Pile Aligning Turner And Stacking Machine Paper Pile Turner Machine
performance feature
1. Operability: two operation panels make manual operation more convenient.
The operation panel on the pile turner enables people to control the operation process of the machine more intuitively and conveniently:
Control the wind volume, align the paper pile back and forth, adjust the clamping force and shaking force of the paper pile, etc.
Performance characteristics

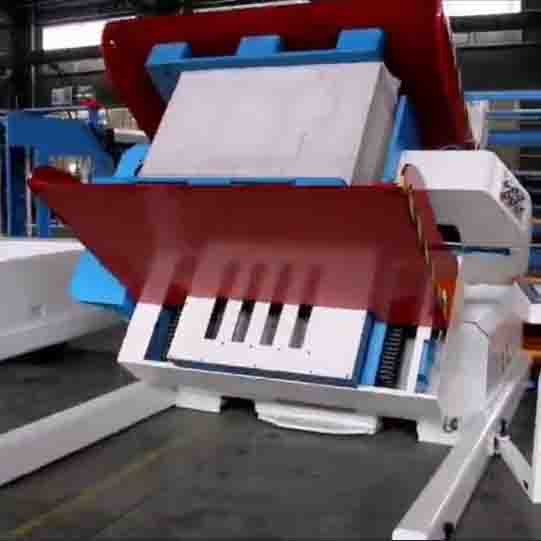

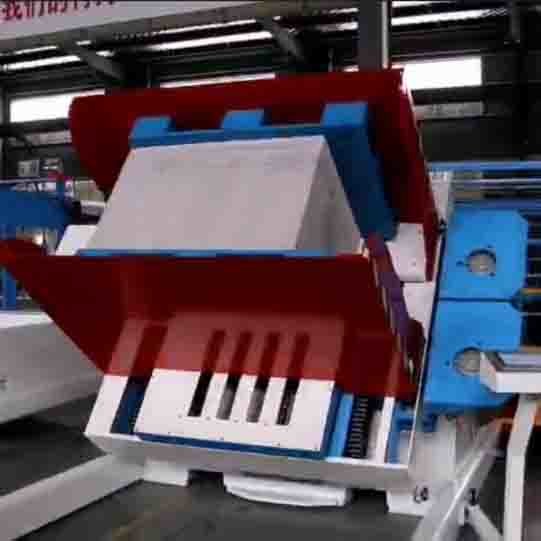

1. Flip the paper pile to replace the tray
Flip the original tray onto the top of the paper pile through the flip function, which is convenient to manually take out the original tray and replace it with other trays. Then flip the paper pile back to its original position with the flip function (especially when the paper pile is purchased and the tray is made of wood).
Features:
1. It can remove the impurities such as paper fibers, paper scraps and printing powders.
Before printing: this machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and reduce the defection rate about 80%. After printing: This machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as paper back pollution. It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing machine.
2. Paper separation.
By vibration and air jetting, the pile is filled with air cushion between the sheet by which the mis-feeding and double-sheeting can be avoided.
3. Aligning.
With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.
4. Turning.
For the piles of double sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work. The working environment will be much better for workers.
5. High efficiency, easy operation.
For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes. Easy operation, no need of special training for operation.
| Technical Parameter |
| Model | PT1300 | PT1450 | PT1650 | PT1900 |
| Maximum paper size(mm) | 800*1300 | 1100*1450 | 1200*1700 | 1400*850 |
| Minimum paper size(mm) | 500*600 | 500*600 | 500*600 | 500*600 |
| Power supply | 3P 380V AC 50HZ |
| Machine weight(kg) | 3500 | 4800 | 6500 | 8000 |
| Max. weight of paper pile(kg) | 1000 | 1400 | 2500 | 3000 |
| Paper pile height(mm) | 800-1600 | 850-1600 | 850-1600 | 900-1600 |
| Total machine power(kw) | 10 | 12 | 14 | 22 |
| Machine size(mm) | 10600*2400*2750 | 11400*2600*2950 | 1300*2700*2950 | 13800*2900*2950 |
